Factory direct selling high quality jet-type vacuum pump

Model: ESP-Y-200;ESP-Y-400

Item specifics

Material:: ss304

Usage:: powder grinding machine Make Super Fine Powder

Machine Type:: pulverizer machine

Feeding Size (mm):: no limited

Function:: Make the vacuum conveying system feed smoothly

Review

Description

Product Description

Feature

The multi-stage jet vacuum pump is driven by compressed air and creates a vacuum through a multi-stage venturi,Has the following characteristics:

1, completely pneumatic, is intrinsically safe explosion-proof.

2, small size, light weight, easy to install.

3. Low vibration and low noise.

4, running parts are very few, maintenance-free.

5, no need to use lubricants, suitable for use in clean environments.

6. Low energy consumption and high vacuum.

Product Specification

Type	Gas consumption NL/S	Material	Air pressure diameter mm
ESP-Y-200	16	ss304	φ12
ESP-Y-400	28	ss304	φ12
ESP-F-400	28	ss304	φ14
ESP-F-800	62	ss304	φ16
ESP-F-1200	98	ss304	φ19
ESP-F-1600	130	ss304	φ25
Power source	Remove oil and water, dust and compress air at a pressure of 0.5-0.65Mpa

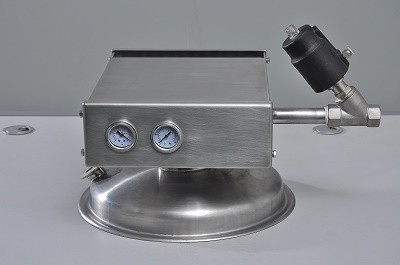

jet vacuum pump front

jet vacuum pump flank
