Industrial vacuum cleaner dry explosion-proof vacuum cleaner
Industrial vacuum cleaner dry explosion-proof vacuum cleaner
Model
KGC-30-200;KGC-50-200;KGC-50-400

Item specifics

Type
KGC-30-200
Inspiratory capacity
45n/l
Gas consumption
14N/L
Material
ss304

Review

Description

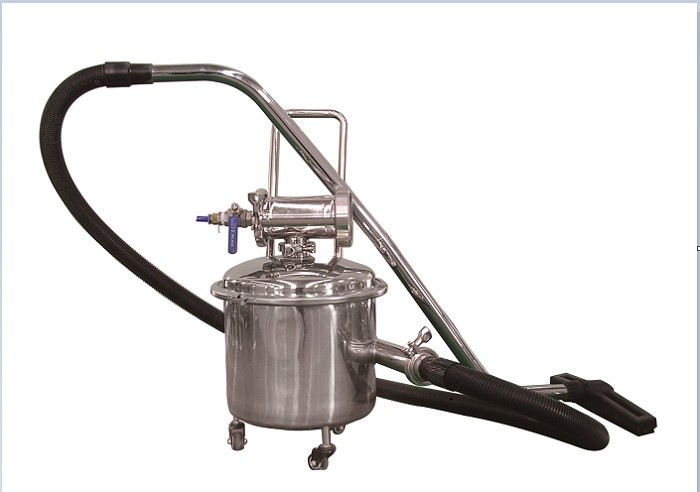

Product Description
The industrial explosion-proof vacuum cleaner is a new type of vacuum cleaner that meets the requirements of cleanliness and explosion protection.
The vacuum cleaner absorbs dust by a vacuum generated by a jet vacuum pump, and the dust is deposited in a vacuum cleaner through a vacuum line to a closed dust chamber. There is no dust spillover during the whole work process, so as to absorb dust and purify the environment. The power used is a single compressed air, without any electrical components, it is an intrinsically safe vacuuming device. The absorbed dust is deposited in a closed environment and fully meets the high standards for powder explosion protection.
The vacuum cleaner material is made of stainless steel, and the inner and outer mirrors are polished. The main components of the equipment are all fast-loading card-type connection, which is convenient for disassembly and assembly. It is widely used in military, chemical, pharmaceutical, food, experimental and other industries. According to the specific use environment and the characteristics of the dust absorbed, different models can be combined to achieve economical purposes.
Product Specification

Type
Inspiratory capacity
NL/S
Air consumption
NL/S
  Volum
     L

Material
Air pressure diameter
MM

KGC-30-200

45
14
10
SS304
φ12

KGC-50-200

45
14
25
SS304
φ12

KGC-50-400

88
28
25
SS304
φ14
Power source

Degreasing water, compressed air, pressure 0.5-0.65Mpa

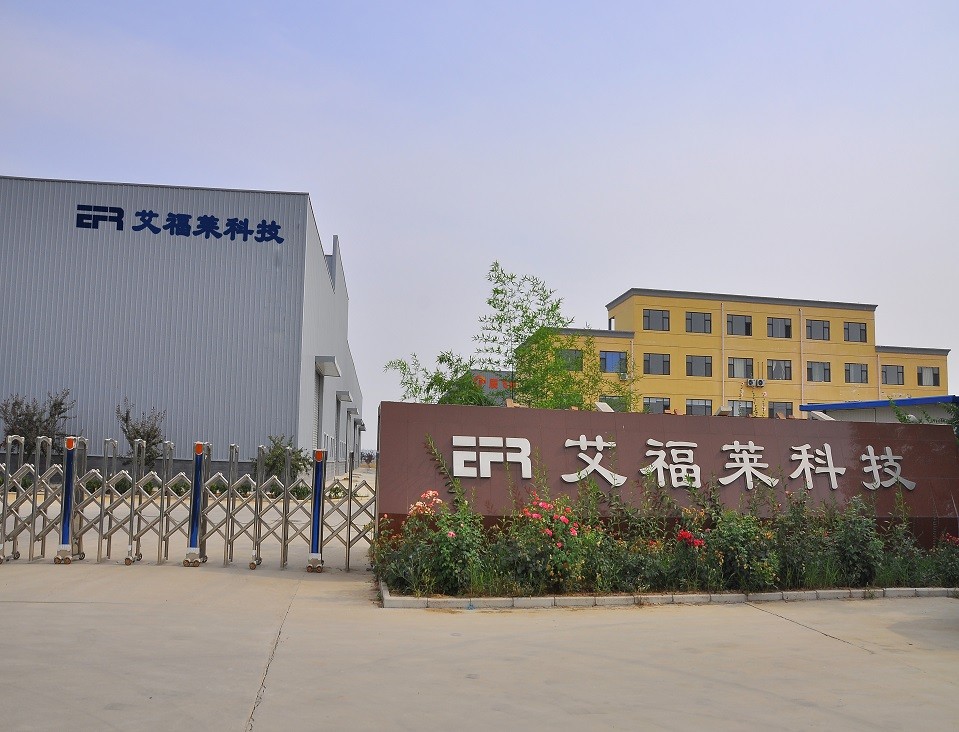

Company Information
After years of unremitting efforts, the company has promoted powder material conveying technology to many fields such as pharmaceutical, food, chemical, etc., through a large number of powder conveying test and a variety of material transport cases, in the powder material transport process has The unique advantage can meet the various transportation needs of different customers, help customers to improve the process, improve the quality and efficiency of the company's products, and is recognized by the company and praised by customers.
Based on the principle of “customer first, honesty and technology first”, the company can solve your technical problems and guarantee the world advanced and reliable equipment. We sincerely hope to cooperate with you.
