Dilute phase positive pressure conveyor
Dilute phase positive pressure conveyor
Model
EDLF-2;EDLF-4;EDLF-6

Item specifics

Model number
EDLF-2
Deliver value
0.5-2t/h
Suction feeding pipe diameter
DN40
Conveying distance
10-120m
Delivery pressure
<0.06MPa

Review

Description

Product Description

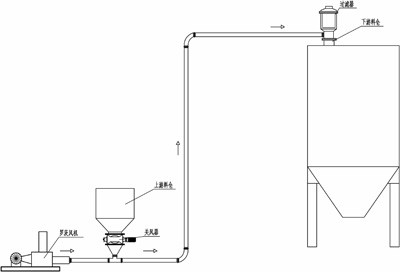

Dilute phase positive pressure conveying, using Roots blower as the conveying power, the air closing device controls the amount of material entering the conveying pipeline, the material is transported to the destination by pipeline, the material is transported in the pipeline at a higher speed in a dispersed state, and the gas is discharged through the filter. Suitable for one-to-many conveying conditions.

Features
1. Use high-efficiency separation dust filter to meet the dust removal of high dust atmosphere and improve                transportation efficiency.

2. The air closing device can be used as the discharge valve at the same position to effectively control the dust in the     relatively open environment.

3. Introduce the discharge position exhaust into the inlet end of the Roots blower to form a gas closed-circuit conveying system. The inert protective gas such as nitrogen can be used to transport the materials required by special physical and chemical requirements.
Product Specification
Type
Delivery value
T/H
Conveying pipe diameter
mm

EDLF-2

0.5-2t/h

DN40





10-120m

<0.06MPa

EDLF-4

1-3t/h

DN50

EDLF-6

2-5t/h

DN65

EDLF-8

3-8t/h

DN80

EDLF-12

5-12t/h

DN80

EDLF-16

7-18 t/h

DN100

EDLF-20

10-25 t/h

DN100

EDLF-26

15-30 t/h

DN125

EDLF-40

20-45t/h

DN125

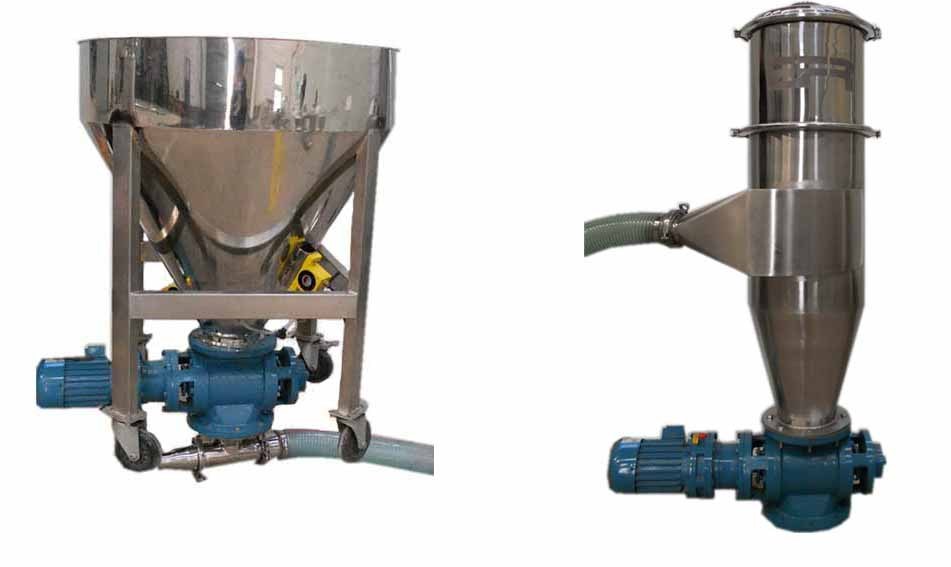

Detail Images
