Positive pressure conveyor dense phase positive pressure conveyor
Positive pressure conveyor dense phase positive pressure conveyor
Positive pressure conveyor dense phase positive pressure conveyor
Positive pressure conveyor dense phase positive pressure conveyor
Model
EDM-50;EDM-65;EDM-80

Item specifics

Model number
EDM-50
Deliver value
1-5t/h
Conveying pipe diameter
DN40-DN50
Conveying distance
60-300m
Delivery pressure
0.2-0.5MPa

Product review

Description

Product Description
Dense phase positive pressure conveying, using Roots blower and air compressor as the conveying power, the material is transported in the pipeline at a lower speed, dune state, fluidized or agglomerated state; suitable for materials with long distance and large conveying capacity Conveying the operating point.

Features
1. Due to the high density of the transported material and low moving speed, the pipe wear and material breakage rate        can be effectively reduced.
2. Due to the small amount of gas required, the end separation filter size model is reduced.
3. Intermittent delivery, can not achieve continuous feeding.
4. Compressed air requirements can not contain water, otherwise it is easy to stick to blockage.
Product Specification
Type
Delivery value
T/H
Conveying pipe diameter
mm

EDM-50

1-5t/h

DN40-DN50









60-300m

0.2-0.5MPa

EDM-65

3-10t/h

DN50-DN65

EDM-80

5-15t/h

DN65-DN80

EDM-100

8-18t/h

DN80

EDM-120

10-25t/h

DN80-DN100

EDM-150

15-35t/h

DN100

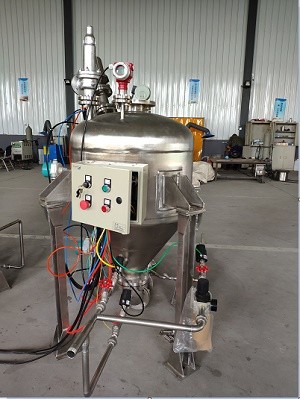

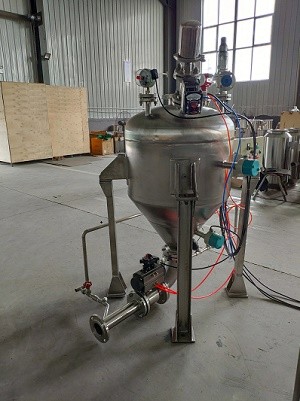

 Dense phase positive pressure conveyor
 Dense phase positive pressure conveyor
 Dense phase positive pressure conveyor
Detail Images
