Model
EDC-20-2;EDC-20-4;EDC-30-4

Item specifics

Model number
EDC-30-2
Overall Dimensions
φ320X850
Weight
35kg
Deliver value
0.5~2
Suction feeding pipe diameter
38/51

Review

Description

Product Description

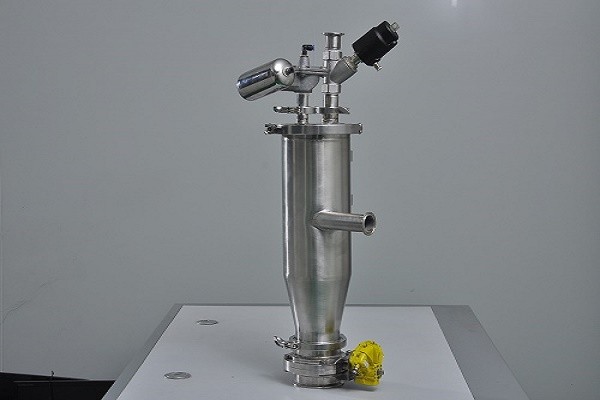

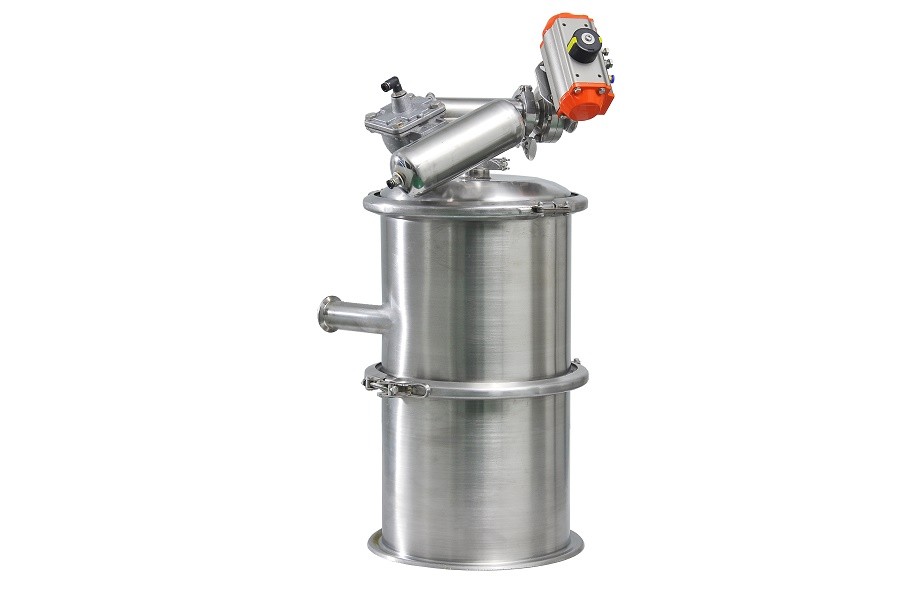

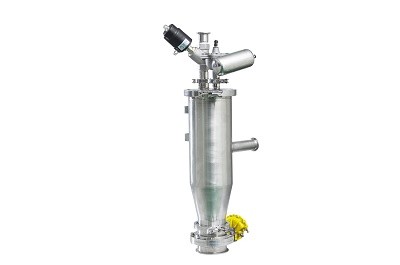

The vacuum source type electronically controlled pneumatic type vacuum conveyor uses an electric vacuum pump to generate a vacuum source and is controlled by an electric controller. The advantage is that the achievable conveying capacity is large, and it can be applied to the occasion of large conveying requirements. The electric controller can meet the complex process production requirements of the multi-process point production workshop to achieve the maximum automation production.
Product Specification
Type
Overall dimension
mm
Weight
kg
Delivery value
T/H
Suction feeding pipe diameter
mm

EDC-20-2

φ250X670

26

0.1~0.5

32/38

EDC-20-4

φ250X970

33

0.3~1.5

38/51

EDC-30-2

φ320X850

35

0.5~2

38/51

EDC-30-4

φ320X1120

41

0.8~3

51

EDC-30-6

φ320X1420

48

1.5~5

51/63

EDC-45-4

φ450X1450

55

2~6

63/76

EDC-F-45-4

φ450X1450

90

2.5-8

76

EDC-45-6

φ450X1690

64

3~9

76

EDC-F-45-6

φ450X1690

100

4~12

76

EDC-63-4

φ650X2020

98

6~16

76

EDC-63-6

φ650X2100

110

8~25

102

      Vacuum source vacuum conveyor                       Vacuum source vacuum conveyor                    Vacuum source vacuum conveyor
