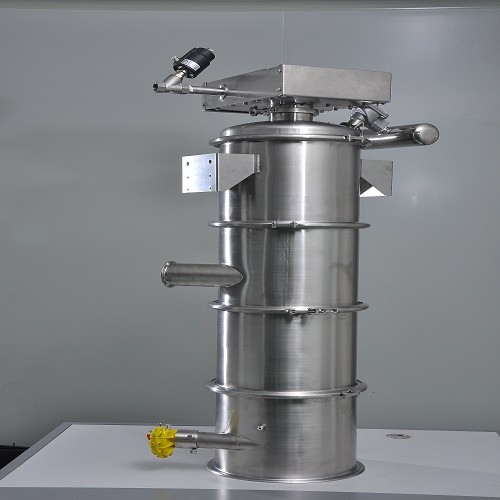

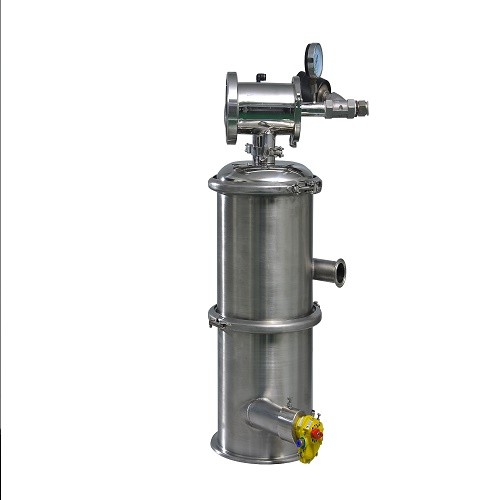

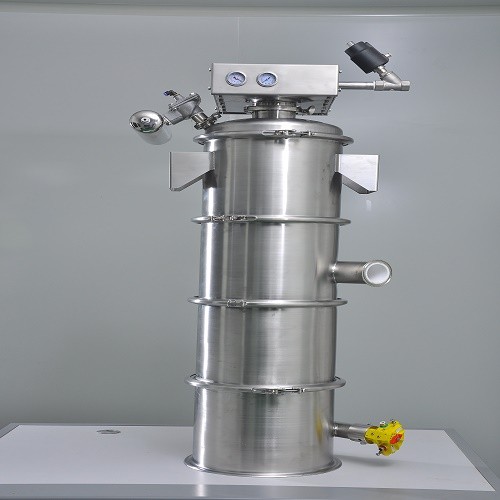

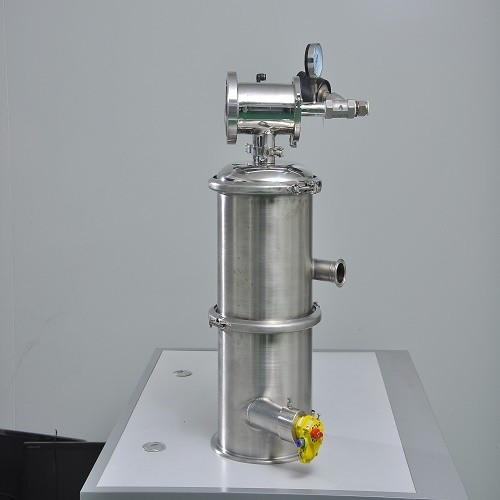

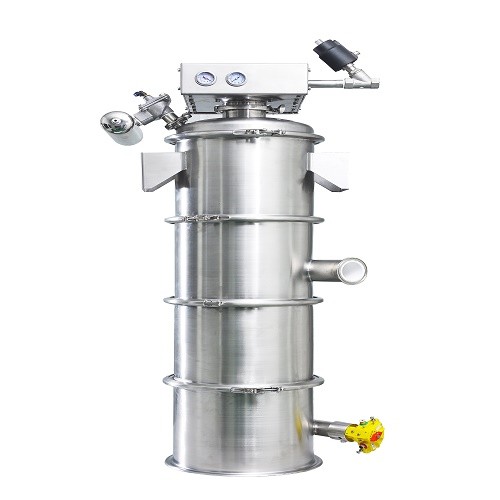

Jet pump vacuum conveyor
- Model
- EVC-20-2-200；EVC-20-4-200；EVC-30-2-200
Item specifics
- Model number
- EVC-20-2-200
- Overall Dimensions
- φ250X680mm
- Weight
- 26kg
- Deliver value
- 0.1~0.5
- Suction feeding pipe diameter
- 32/38mm
- Maximum gas consumption
- 15
Review
Description
Product Description
The jet pump vacuum conveyor adopts a single compressed air as the power source. The whole machine does not need electricity. It is an intrinsically safe explosion-proof equipment, which can be used to transport flammable and explosive materials in the case of high explosion-proof requirements. At the same time, because of the use of compressed air, the installation is simple, and the maintenance and maintenance are quite convenient.
Product Specification
|
Type
|
Overall dimension
mm |
Weight
kg |
Delivery value
T/H |
Suction feeding pipe diameter mm | Maximum gas consumption NL/S |
|
EVC-20-2-200 |
φ250X680 |
26 |
0.1~0.5 |
32/38 | 15 |
|
EVC-20-4-200 |
φ250X910 |
33
|
0.2~1.5 |
38/51 | 15 |
|
EVC-30-2-200 |
φ320X800 |
35
|
0.5~2 |
38/51 | 15 |
EVC-30-4-400 | φ320X1110 | 41 | 0.8~3 | 51 | 29 |
EVC-30-6-800 | φ320X1370 | 48 | 1.5~4 | 51/63 | 44 |
EVC-45-4-800 | φ450X1400 | 55 | 2~6 | 63/76 | 44 |
EVC-F-45-4-1000 | φ450X1400 | 90 | 2.5-8 | 76 | 66 |
EVC-45-6-1000 | φ450X1400 | 64 | 3~10 | 76 | 66 |
EVC-F-45-6-1200 | φ450X1600 | 100 | 4~12 | 76 | 88 |
EVC-63-4-1200 | φ450X1600 | 160 | 5~12 | 76 | 88 |
EVC-63-6-1600 | φ650X1840 | 200 | 8~22 | 89/102 | 115 |
